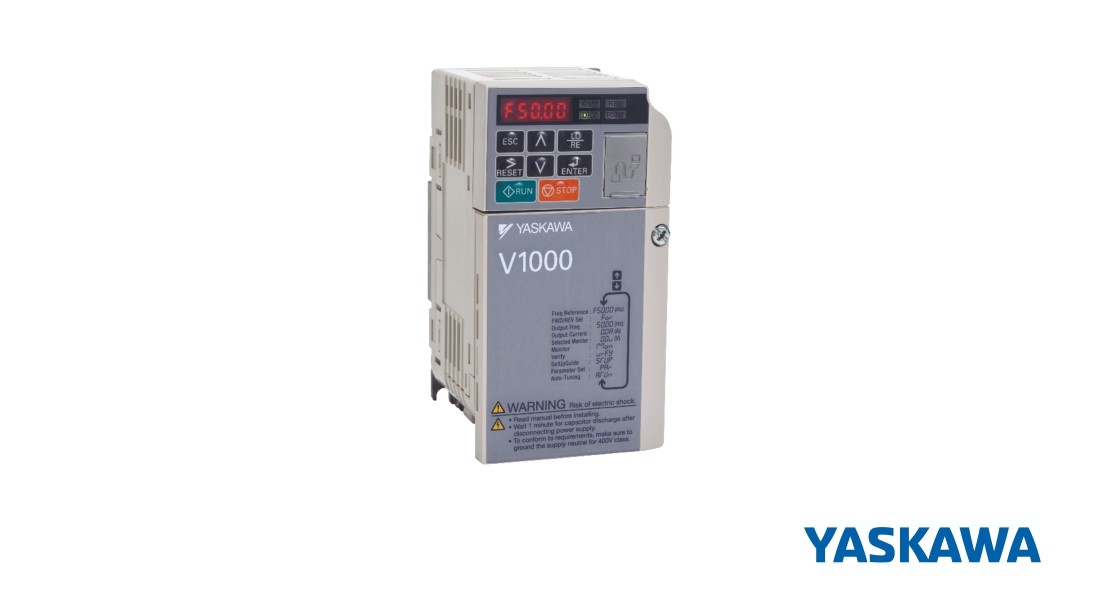

V1000 – Machine Drives
Rating
1 Phase 200VAC, 0.2kW to 5.5kW
3 Phase 200VAC, 0.2kW to 18.5kW
3 Phase 400VAC, 0.4kW to 18.5kW
Features
Up to 30% smaller than the competition
Current vector control, open loop
RoHS compliance
On-line tuning
Induction motor (IM) or permanent magnet motor (PM) operation
Function Block Diagram (FBD) programming via DriveWorksEZ™
Side-by-side installation due to patented hybrid heatsink
Removable terminal block with parameter backup function
One-touch copy function with verify
Super-fast 2 ms scan cycle with dual CPU
EN954-1 Safety Cat. 3, Stop Cat. 0
Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
1 in 10,000 failure rate
Swing PWM function to decrease noise at low carrier frequencies
Pre-maintenance function
Modbus communication
Cooling fan replacement without tools
MTBF: 28 years
Short Circuit Current Rating (SCCR): 30kA rms symmetrical
Common programming with all other Yaskawa drives
DriveWizard software available at no extra cost
Related Products

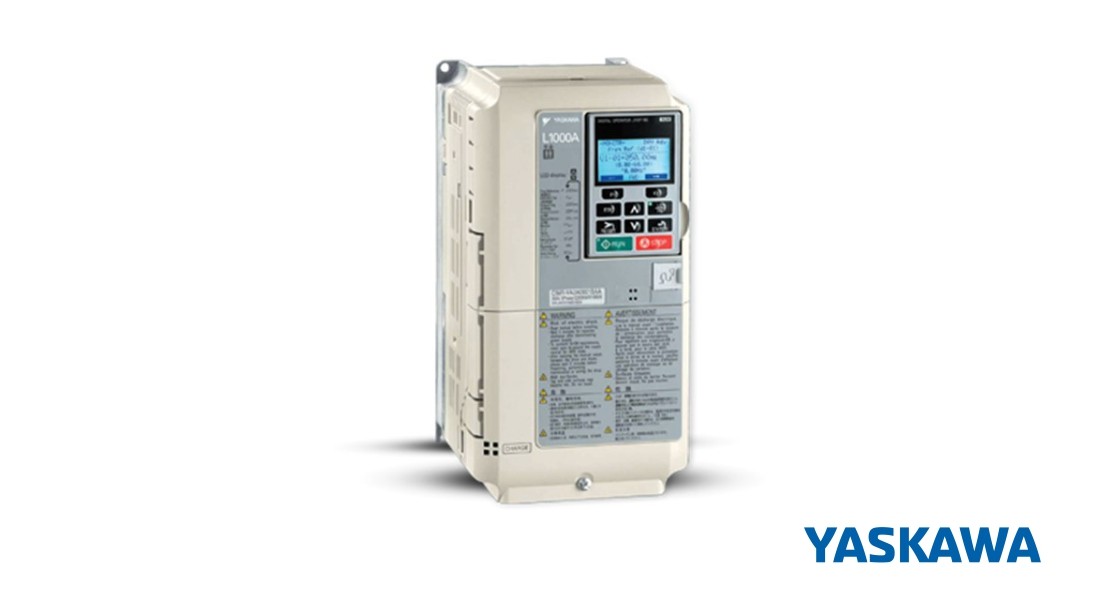

L1000A
L1000A
YASKAWA

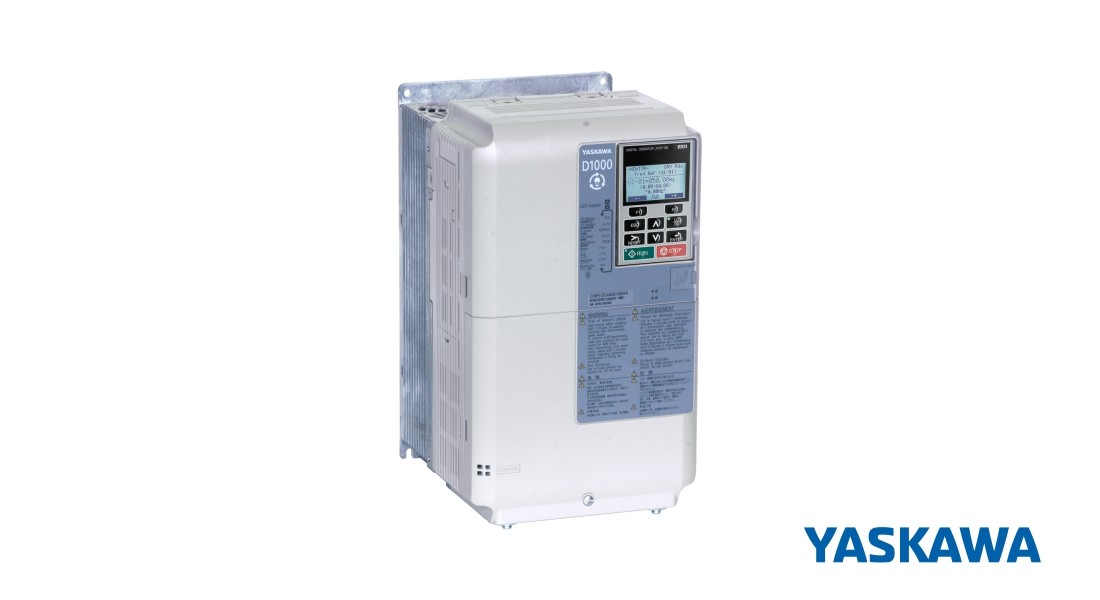

D1000 – Power Regenerative Converter
D1000 – Power Regenerative Converter
YASKAWA

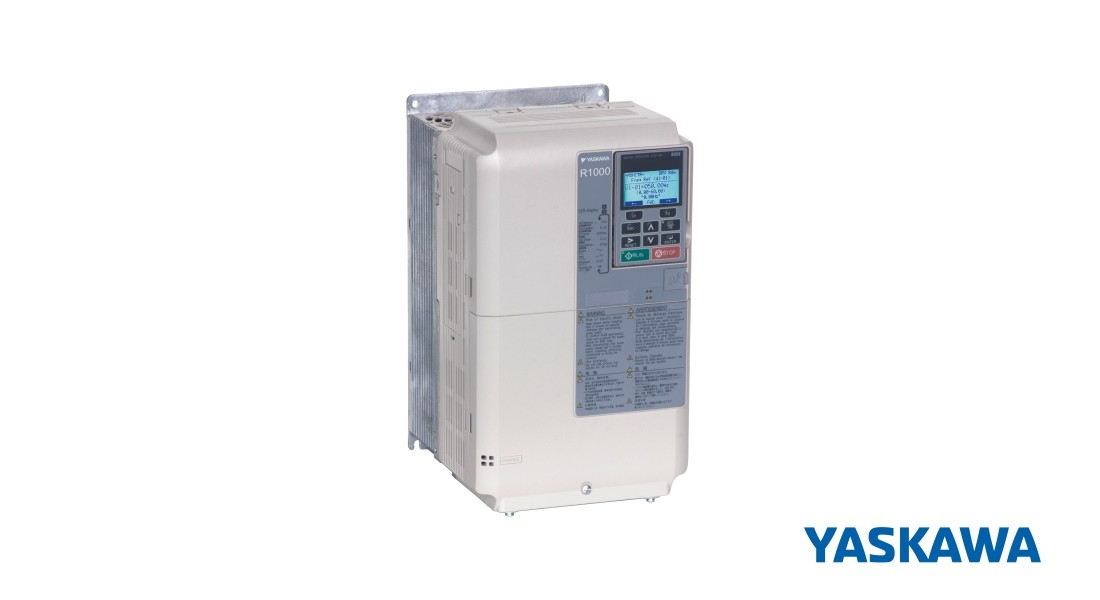

R1000 – Regenerative Braking Unit
R1000 – Regenerative Braking Unit
YASKAWA

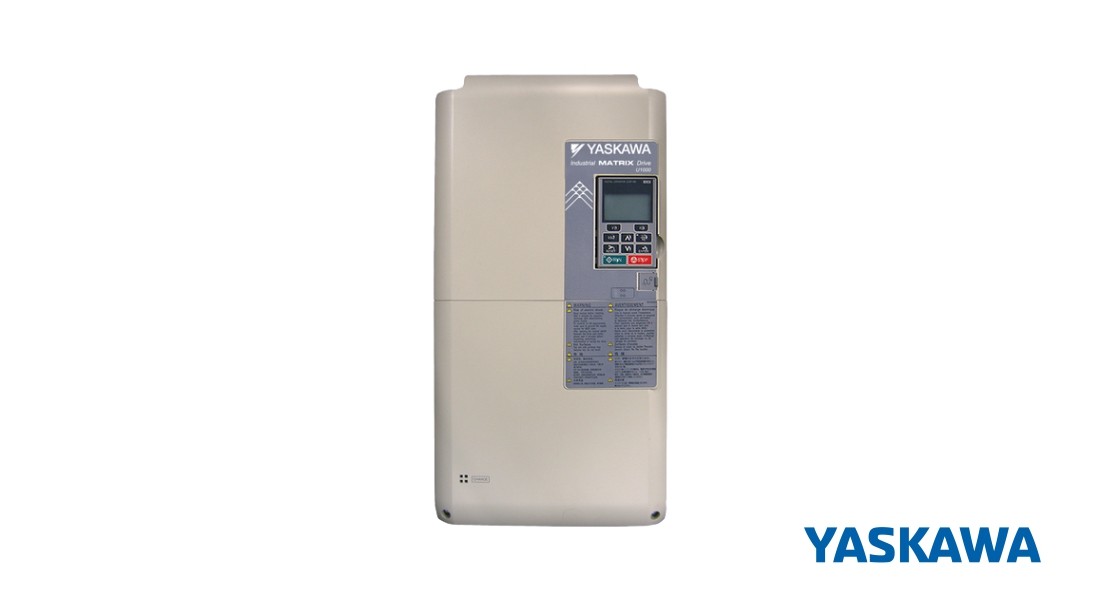

U1000 – Industrial Matrix Drives
U1000 – Industrial Matrix Drives
YASKAWA

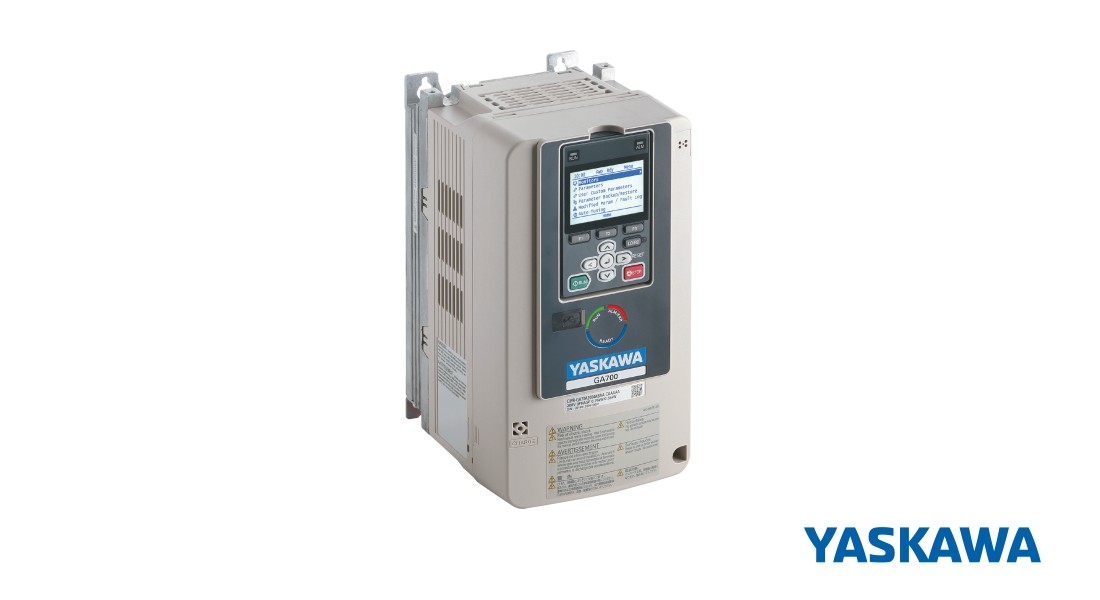

GA700 – Advanced Vector control & IoT Drive
GA700 – Advanced Vector control & IoT Drive
YASKAWA

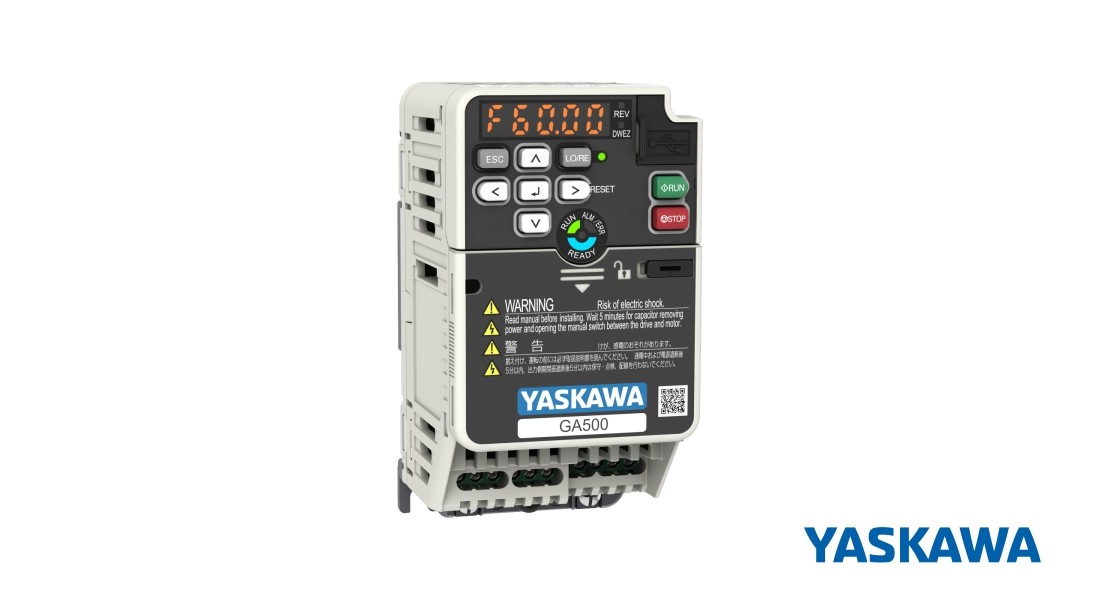

GA500 – Machine Drives
GA500 – Machine Drives
YASKAWA

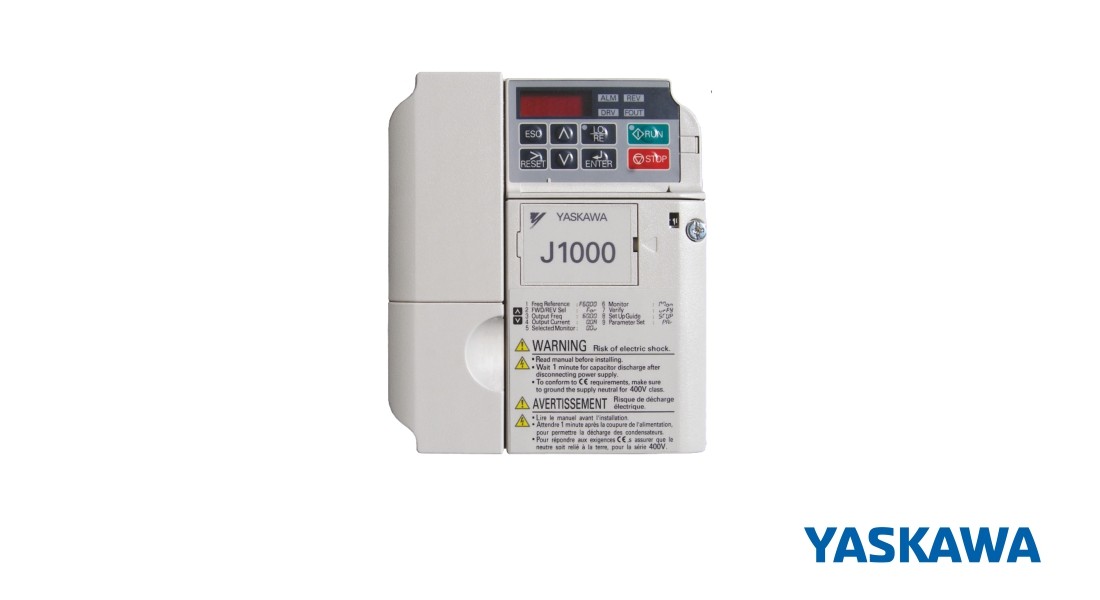

J1000 – Machine Drives
J1000 – Machine Drives
YASKAWA

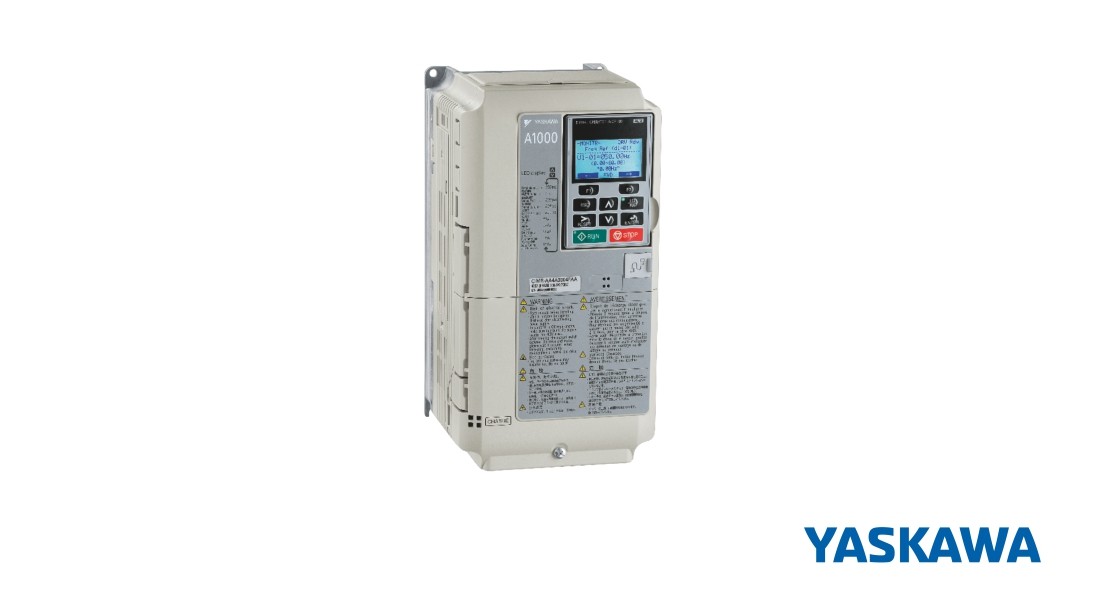

A1000 – High Performance Vector control Drives
